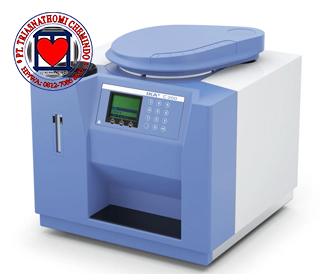

Calorimeters C 200

Harga	Call Us
Deskripsi Produk	C 200 C 200-System consists of the following components: Measuring cell C 200 Decomposition vessel C 5010 Oxygen filling station C 248 Consumables for calibrations and installation Space-saving and low cost combustion calorimeter for determing gross calorific values of liquid and solid samples. Validation according to DIN 51900,ISO 1928, ASTM D240, ASTM D4809, ASTM D5865, ASTM D1989, ASTM D5468, ASTM E711. Suitable for teaching and training, as well (f.e tecnical- schools, universities) and for industriell laboratories with less analyses.. Manual handling for water and oxygen filling. Four different working methods, isoperibolic, dynamic, manual, time controlled makes possible an ideal adjustment of different operating tasks. Clear and easily explained display which is simply to use . With an external power pack, "world tension useable" from 100 - 240 V AC, 50/60 Hz. The operating voltage of the calorimeter is 24 V DC low- voltage. Friendly in aftersales Manual ( teaching mode): ignition and end of the measurement will be done by the operator himself; the temperature increase will be indicated at the display each minute. All calculations have to be done manually. At the other three modes ignition and calculation of the gross calorific value will be done automatically. The gross calorific value will be shown on the display. Acid corrections and calculations of the net calorific value have to be done manually. The modes have different measuring times: Isoperibolic: approx: 17 min. Dynamic : approx. 8 min Manual : approx. 17 min (depend on the operator) Time controlled : 14 min The decomposition vessel can be equiped in to use an combustible crucibles C 14 (accessory C 5010.4 attachment is neessary) User-friendly software C 6040 Calwin for controlling the calorimeter and administration of measuring data(asseccory). Transfer of the datas to Excel or Word are possible Up to eight IKA measuring cells can be controlled by a single PC, using a multiserial plug in card PCI 8.2 (accessory) Technical Data Measuring range max. 40000 J Measuring mode dynamic 25°C yes Measuring mode isoperibol 25°C yes Measuring time dynamic approx. 8 min Measuring time isoperibol approx. 17 min Reproducibility dynamic (1g benzoic acid NBS39i) 0.1 %RSD Reproducibility isoperibol (1g benzoic acid NBS39i) 0.1 %RSD Working temperature max. 25 °C Temperature measurement resolution 0.0001 K Interface printer Centronix Interface PC RS232 Decomposition vessel C 5010 yes Works according to DIN 51900 yes Works according to DIN EN ISO 1716 yes Works according to DIN EN ISO 18125 yes Works according to DIN EN 15400 yes Works according to DIN CEN TS 14918 yes Works according to DIN CEN/TS 16023 yes Works according to DIN SPEC 19524 yes Works according to ASTM D240 yes Works according to ASTM D4809 yes Works according to ASTM D5468 yes Works according to ASTM D5865 yes Works according to ISO 1928 yes Works according to GOST Certified yes Dimensions (W x H x D) 400 x 400 x 400 mm Weight 28.912 kg Permissible ambient temperature 20 - 25 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 20 RS 232 interface yes Voltage 100 - 240 V Frequency 50/60 Hz Power input 120 W Accessories
