Calorimeters C1

Harga	Call Us

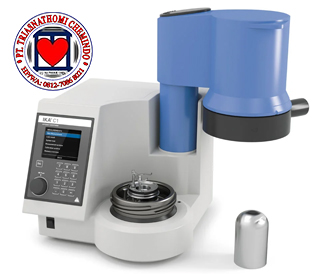

Deskripsi Produk	C 1 Package 1/10 The C 1 static jacket oxygen bomb calorimeter represents a giant leap forward in calorimeter technology by featuring a high degree of automation in a compact design; the smallest calorimeter footprint available. It operates according to DIN 51900 and ISO 1928. The temperature readings are analyzed according to the classical isoperibol method of Regnault Pfaundler. The traditionally known, comparably heavy screw threaded decomposition vessel, has been replaced by a light and easily attachable combustion chamber. Due to the variety of different interfaces (PC, balance, printer) this unit is easily adaptable depending on the customer’s specific application needs. Further adaption to data management and LIMS is possible with our calorimeter software C 6040 Calwin (Accessory). The C 1 Package 1/10 contains the C 1 Calorimeter (inclusive standard combustion chamber C 1.10) and the cooling water supply unit RC 2 basic. The unit contains all parts necessary to set up the unit. We also supply wear parts and consumables for the first approximately 500 experiments including 25 calibrations. The C 1.10 combsution chamber is equipped with the C 5010.5 large crucible holder and C 6 large quartz crucible. Technical Data Measuring range max. 40000 J Measuring mode static jacket 22°C yes Measuring mode static jacket 30°C yes Measurements/h 4 Reproducibility static jacke (1g benzoic acid NBS39i) 0.15 %RSD Working temperature 20 - 30 °C Temperature measurement resolution 0.0001 K Cooling medium temperature 18 - 29 °C Cooling medium permissible operating pressure 1.5 bar Cooling medium tap water Type of cooling flow Flow rate 50 - 60 l/h Rec. flow rate at 18°C 55 l/h Oxygen operating pressure max. 40 bar Interface scale RS232 Interface printer RS232 Interface PC RS232 Oxygen filling yes Degasification yes Decomposition vessel integrated yes Decomposition vessel, halogen resistant yes Works according to DIN 51900 yes Works according to DIN CEN/TS 16023 yes Works according to DIN SPEC 19524 yes Works according to ISO 1928 yes Dimensions (W x H x D) 290 x 280 x 300 mm Weight 55.84 kg Permissible ambient temperature 5 - 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 20 RS 232 interface yes USB interface yes Voltage 100 - 240 V Frequency 50/60 Hz Power input 120 W Add caption Accesssories
