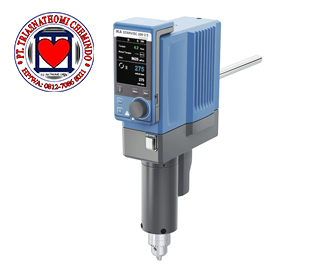

Measuring stirrers STARVISC 200-2.5 control

Harga	Call Us
Deskripsi Produk	Measuring stirrers STARVISC 200-2.5 control Measure viscosity and display it, even during product development: the new IKA STARVISC 200-2.5 control torque-measuring stirrer makes it possible. The result can be read in real-time on the display. STARVISC therefore has a broad range of applications. This is particularly helpful during product development: STARVISC already clearly indicates while running research programmes as to whether the stirred substance can be used as desired. High-precision measurement STARVISC measures in a highly precise way and does this even during the manufacturing process. Samples no longer have to be taken separately.   Viscosity calculation A viscosity calculation can be carried out immediately via a userfriendly menu.   Removable control unit The modern TFT display is removable. This means that STARVISC can also be controlled from a safe distance.   Powerful stirrer Even highly viscous substances can be intensively stirred using the powerful STARVISC stirrer. Technical Data Stirring quantity max. per stirring position (H2O) 100 l Motor rating input 130 W Motor rating output 84 W Motor principle Brushless DC Speed display TFT Speed range 0/6 - 2000 rpm Intermittent operation yes Viscosity max. 100000 mPas Output max. at stirring shaft 84 W Permissible ON time 100 % Torque max. at stirring shaft 200 Ncm Torque I max. 200 Ncm Torque II max. 40 Ncm Speed range I (50 Hz) 6 - 400 rpm Speed range II (50 Hz) 30 - 2000 rpm Speed range I (60 Hz) 6 - 400 rpm Speed range II (60 Hz) 30 - 2000 rpm Speed control stepless Setting accuracy speed 1 ±rpm Deviation of speed measurement n > 300rpm 1 ±% Deviation of speed measurement n < 300rpm 3 ±rpm Stirring element fastening chuck Connection for ext. temperature sensor PT1000 Temperature display yes Plug-in coupling (Ø) 10 mm Chuck range diameter 0.5 - 10 mm Hollow shaft, inner diameter 10.3 mm Hollow shaft (push-through - when stopped) yes Fastening on stand extension arm Extension arm diameter 16 mm Extension arm length 220 mm Torque display yes Nominal torque 2 Nm Torque measurement yes Deviation of torque measurement I 2.5 ±Ncm Deviation of torque measurement II 2.5 ±Ncm Timer yes Timer display TFT Time setting range 1 - 6000 min Temperature measuring range -10 - +350 °C Temperature measurement resolution 0.1 K Accuracy of temperature measurement ±0.5 + tolerance PT1000 (DIN IEC 751 Class A) K Limit deviation temperature sensor ≤ ± (0.15 + 0.002xITI) K Housing material alu-cast coating / thermoplastic polymer Communication distance (depend onbuilding) max. 150 m Dimensions (W x H x D) 91 x 395 x 231 mm Weight 5.9 kg Permissible ambient temperature 5 - 40 °C Permissible relative humidity 80 % Protection class according to DIN EN 60529 IP 40 RS 232 interface yes USB interface yes Voltage 230 / 100 - 115 / 100 V Frequency 50/60 Hz Power input 130 W Accessories
