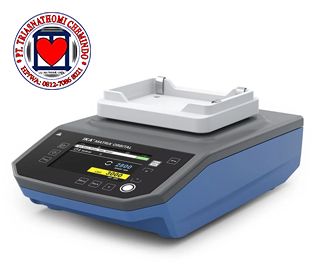

IKA Matrix Orbital
The IKA Matrix Orbital is part of a new and powerful product family of thermoshakers available. IKA Matrix Orbital mixes and is suitable for variable inserts. Whether its blood samples, pharmaceutical agents, DNA/RNA samples or ELISA assays – samples with even the smallest volumes mix reliably and completely in all laboratory applications. No cross-contamination and an optimal mixing result. In addition, IKA Matrix Orbital comes with numerous user-friendly features: - Large and clear display with a convenient menu structure allows for intuitive operation
- Speeds of up to 3,000 rpm and shaker diameter of 3 mm ensure the liquid mixes quickly and effectively
- Two different speed modes for optimal mixing
- Speed adjustment according to insert, attachment and filling volume
- Aluminum die cast housing ensures secure positioning, excellent stability and everyday robustness
Specification | Type of movement | Orbital | | Shaker diameter | 3 mm | | Maximun load | 0.3 kg | | Permissible ON time | 100 % | | Speed min (adjustable) | 300 rpm | | Speed range | 0 - 3000 rpm | | Speed display | TFT | | Speed deviation | 30 ±rpm | | Speed control | 10 RPM Steps | | Timer | yes | | Timer display | TFT | | Time setting min. | 1 s | | Time setting max. | 6000 min | | Operating mode | timer and continuous operation | | Working with microtiter plates | yes | | Number of microtiter plates | 1 | | Number of reaction vessels | 24x 0.5 ml / 24x 1.5 ml / 24x 2.0 ml | | Number of PCR plates | 1 | | Number of Deep Well Plates (DWP) | 1 | | Dimensions (W x H x D) | 200 x 120 x 320 mm | | Weight | 7.2 kg | | Permissible ambient temperature | 5 - 40 °C | | Permissible relative humidity | 80 % | | Protection class according to DIN EN 60529 | IP 21 | | RS 232 interface | yes | | USB interface | yes | | Voltage | 100 - 240 V | | Frequency | 50/60 Hz | | Power input | 80 W | | Power input max. | 80 W |
